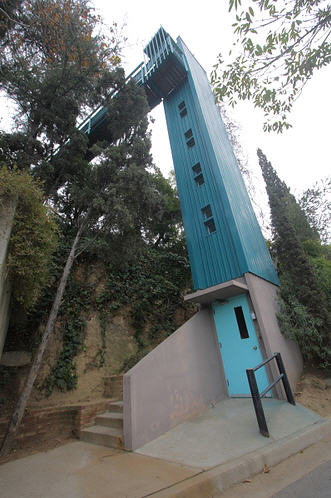

 Private Residence Elevator
Image 31
Los Angeles, California, U.S.A.
Image provided by: Sissy Yarborough
 I know more!



 Private Residence Elevator
Image 32A

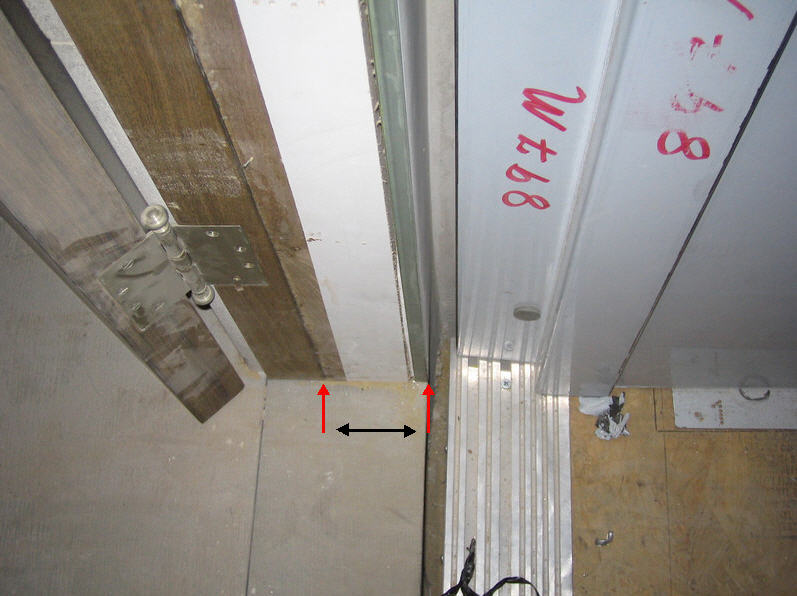

In California (and many other jurisdictions) the following rule applies:
"The clearance between the hoistway doors or gates and the
hoistway edge of the landing sill shall not exceed 3 inches.
The distance between the hoistway face of the landing door
or gate and the car door or gate shall not exceed 5 inches."
If the distance between the two red arrows is greater than 3 inches
a space guard (baffle) is required. See the information below.
Image provided by: Josh Brolin
 I know more!



 Private Residence Elevator
Image 32B
This is an illustration from the Otis safety brochure...
Image "borrowed" from: Otis Elevator Company - Otis Safety Series No. 2
 I know more!

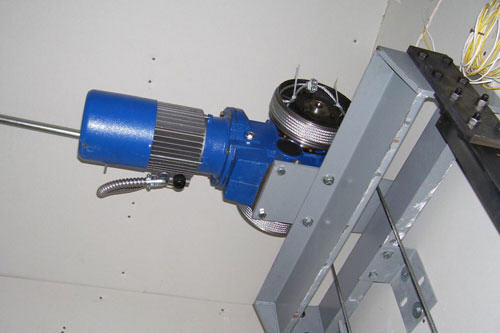

 Private Residence Elevator
Image 33
An overhead winding-drum machine...
Image provided by: Larry Hearns
 I know more!

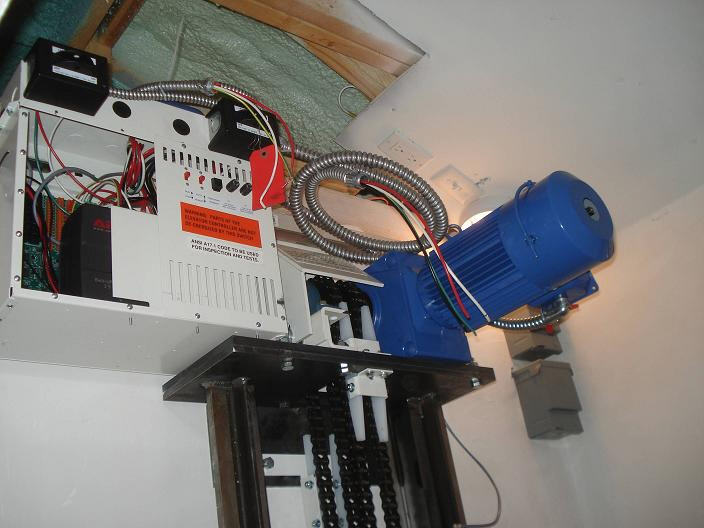

 Private Residence Elevator
Image 34
An installation with EVERYTHING in the hoistway...including the mechanic!
Image provided by: Earl Adams
 I know more!

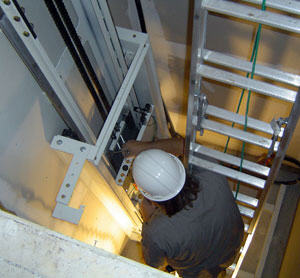

 Private Residence Elevator
Image 35
Installing the cantilevered car frame...
Image provided by: Ward Leonard
 I know more!

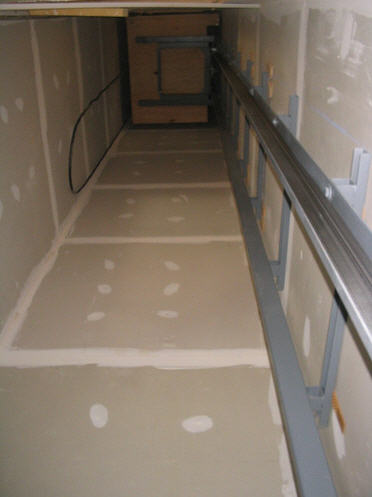

 Private Residence Elevator
Image 36
I wonder if this is an overhead winding-drum machine as well?
Image provided by: Joey Smith
 I know more!



 ~    ~    ~
