Antique Conveyances - Escalators
The Tyne Tunnel Wooden Escalators
River Tyne, England
Return to elevatorbob's Antique Conveyances
Return to elevatorbob's Elevator Pictures
This introduction is from: Wikipedia - The Tyne Tunnel
The Tyne Tunnel is a two-lane toll vehicular tunnel under the River Tyne, England, completed in 1967, and connecting Jarrow on the south side of the river with Howdon on the north. The tunnel is one of three forming the Tyne Tunnel project; less well known are the pedestrian and cyclists' tunnels opened in 1951. The tunnels are some 11 kilometres downstream and to the east of Newcastle Upon Tyne. The road tunnel is part of the A19 road.
At each end, the tunnels are connected to surface buildings by four escalators and lifts. The Waygood-Otis escalators have 306 wooden steps each, and are the original models from 1951. At the time of construction, they were the longest single-rise escalators in the world, with a vertical rise of 85 ft (25.9 m) and a length of approximately 200 ft (60 m).
Image 1
Location of the Tyne Tunnel in the United Kingdom
From: The Tyne Tunnel Web Site
I know more!
Image 2
Pedestrians enjoying an escalator ride many years ago...
From: The Tyne Tunnel Web Site
I know more!

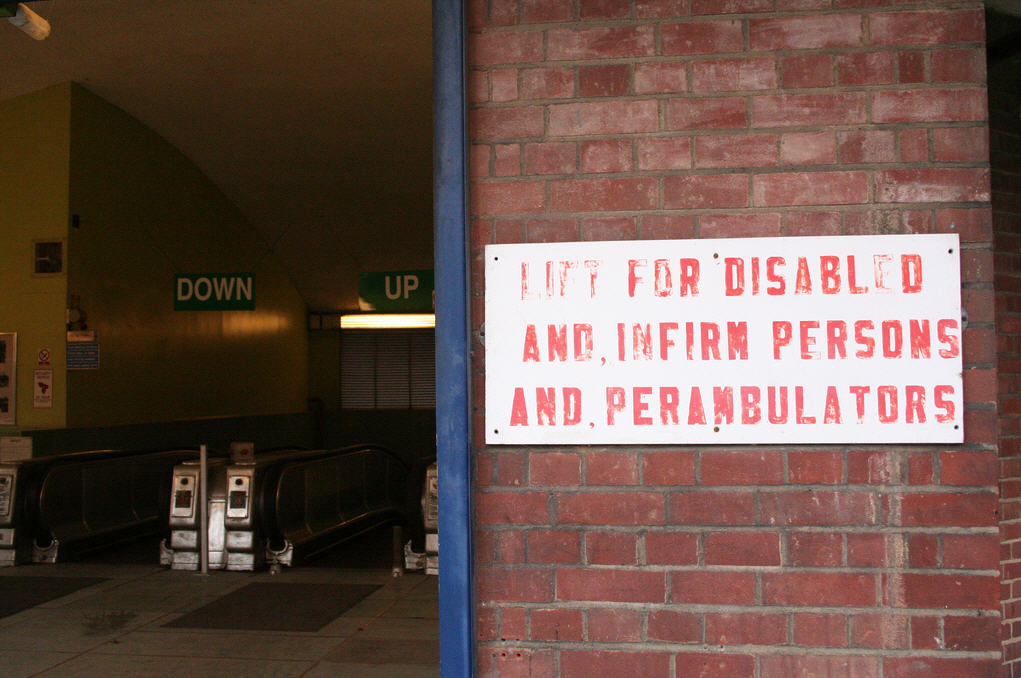

Image 3
A lift warning (perambulators - a baby carriage or buggy)...
Image provided by: Sam Judson
I know more!
Image 4
How to use the wooden escalators...
Image provided by: Elly Avatori
I know more!

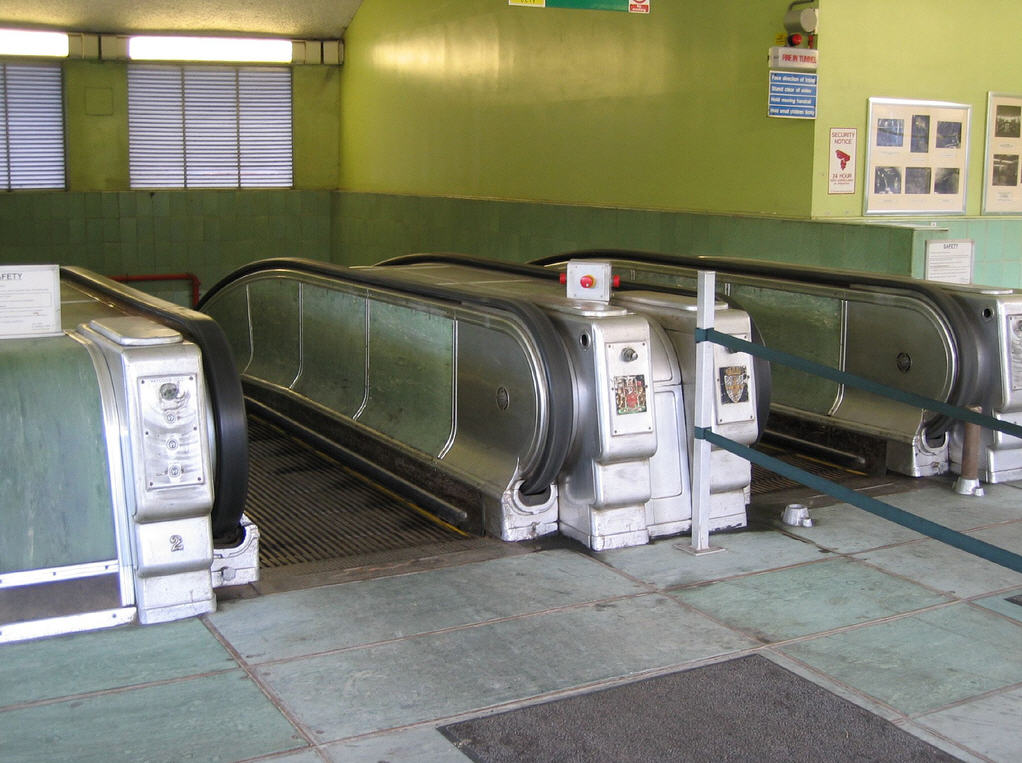

Image 5

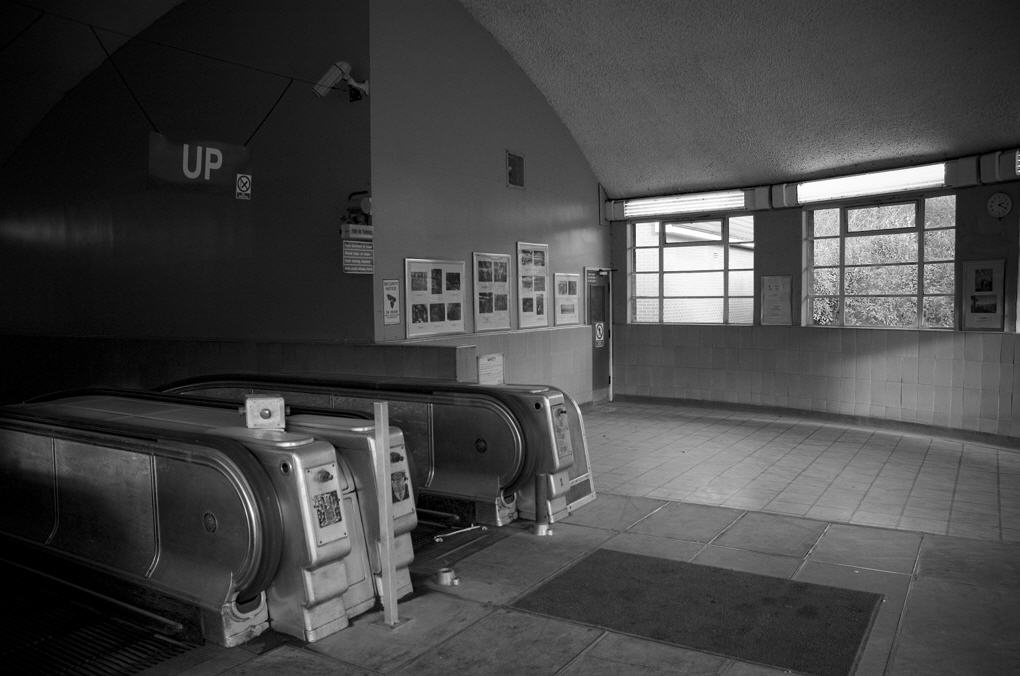

Escalator entrance and exit area...
Image provided by: Sam Judson
I know more!
Image 6
Escalator rise (when in the United Kingdom - drive/ride on the left)
Image provided by: apwbATTACK
I know more!

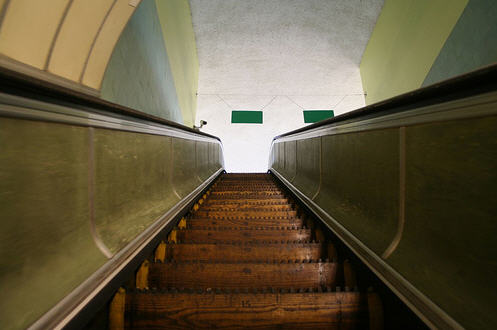

Image 7

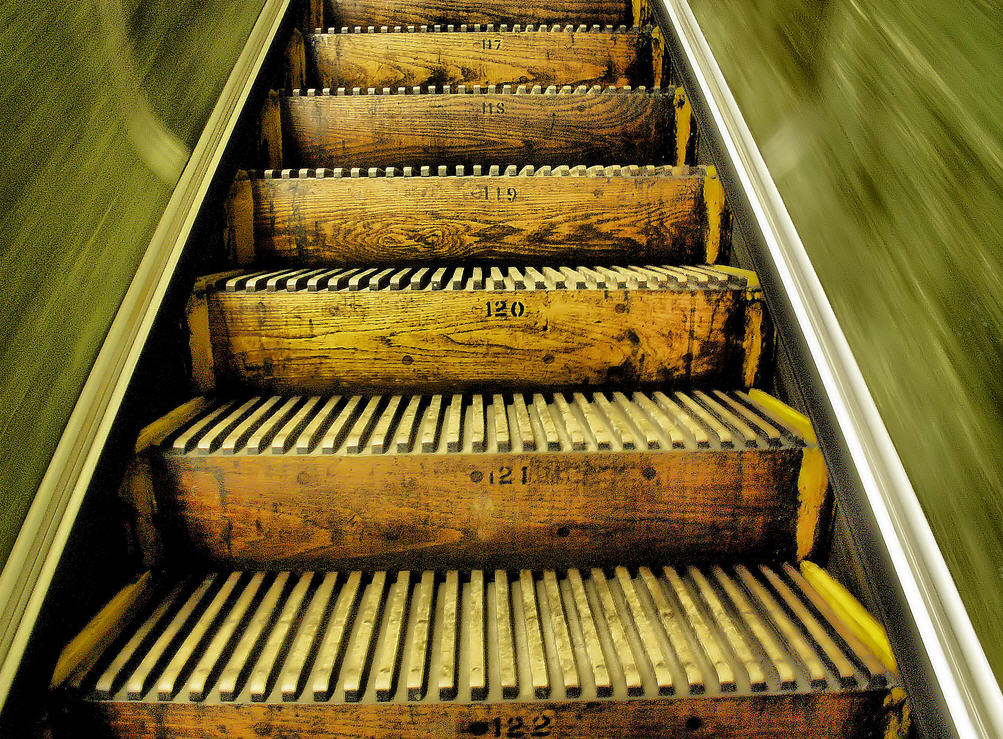

Escalator rise - each step is identified...
Image provided by: Sam Judson
I know more!

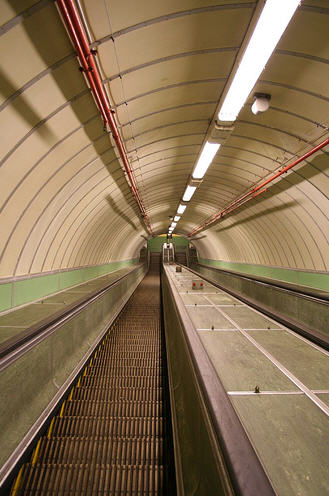

Image 8

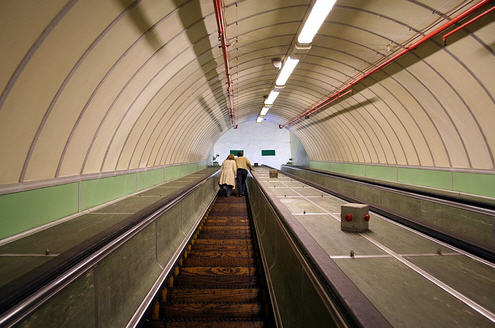

Vertical Rise - 85 ft (25.9 m) ~ Length - Approximately 200 ft (60 m)...
Image provided by: apwbATTACK
I know more!
Image 9
A beautiful set of escalators manufactured by Waygood-Otis...
Image provided by: apwbATTACK
I know more!
Image 10
A little image enhancement...
Image provided by: Morris Godeel
I know more!
Image 11
Image provided by: Ray Ikeale
I know more!
Image 12

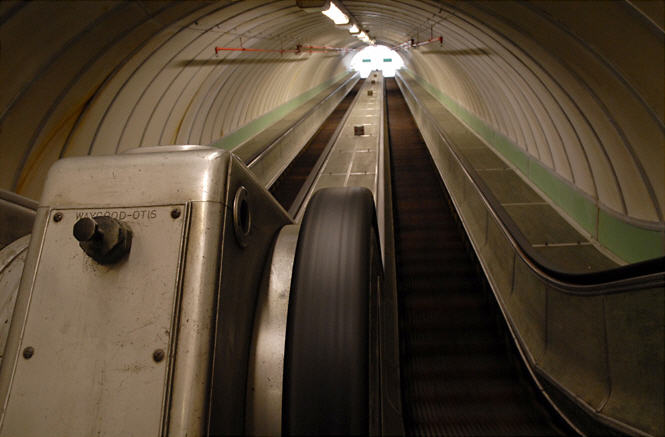

Waygood-Otis
Image provided by: May Connors
I know more!
Image 13
As you can see there are quite a few emergency stop buttons provided...
Image provided by: Randy Hodges
I know more!
Image 14

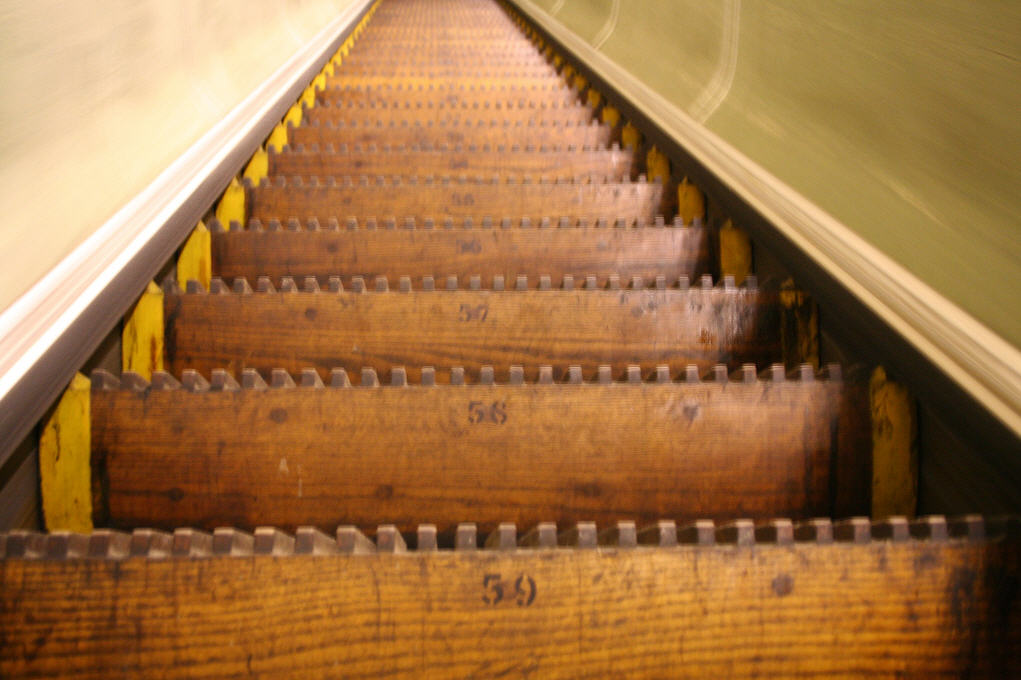

Step after step...
Image provided by: Frank Netty
I know more!
