Electric Elevators
Safeties
Return to elevatorbob's Electric Elevators
Return to elevatorbob's Elevator Pictures
Image 1

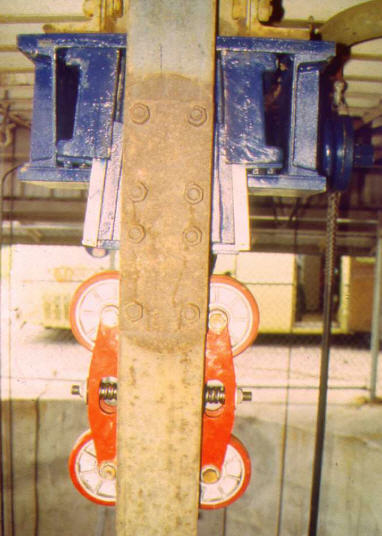

The upper half of a duplex wedge-operated flexible guide-clamp safety device (Type B safety device).
This image is also part of the Mine Elevators series of photos.
Image provided by: Jerry Taylor
I know more!
Image 2

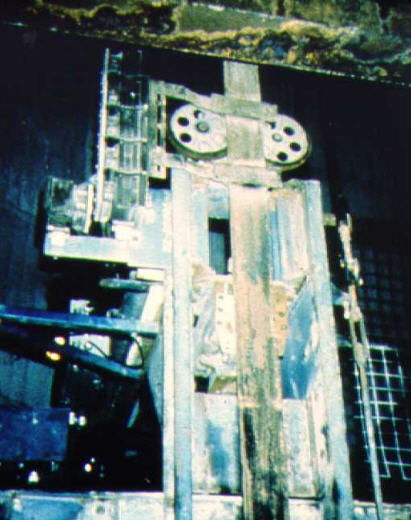

A wedge-operated flexible guide-clamp safety device (Type B safety device).
This image is also part of the Mine Elevators series of photos.
Image provided by: Jerry Taylor
I know more!
Image 3

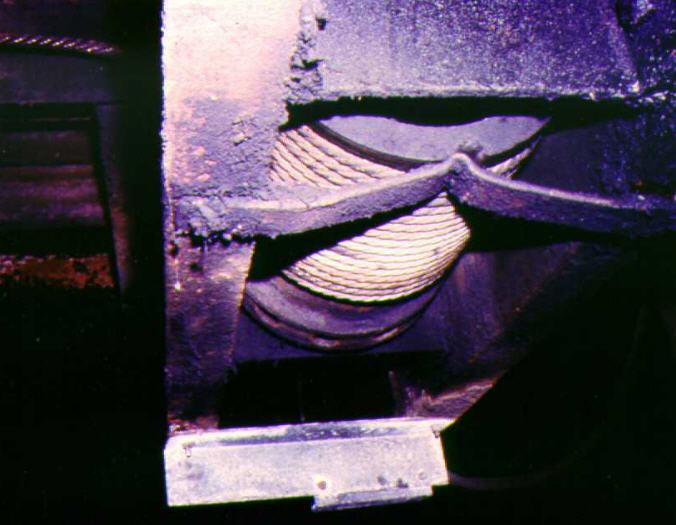

A drum-operated wedge clamp safety device (Type B safety device).
The drum and safety drum rope are visible within the safety plank.
Image provided by: Roi Lung
I know more!
Image 4

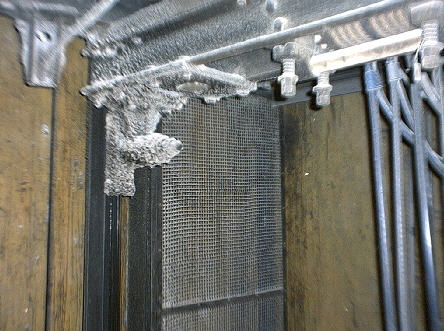

A drum-operated wedge clamp safety device (Type B safety device).
A drum "detent" appears to have been added in the field.
This image is also part of the Mine Elevators series of photos.
Image provided by: Jerry Taylor
I know more!
Image 5

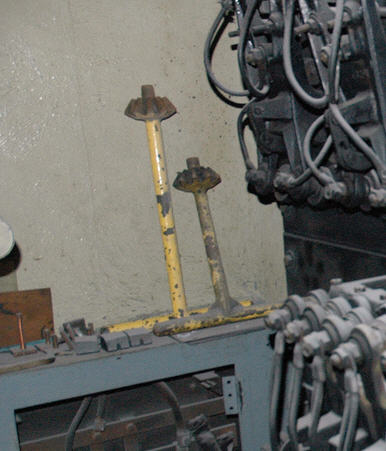

These wrenches are typical of the type used to reset drum-operated safeties (Type B safety device)
Image provided by: Fred Small
I know more!
Image 6

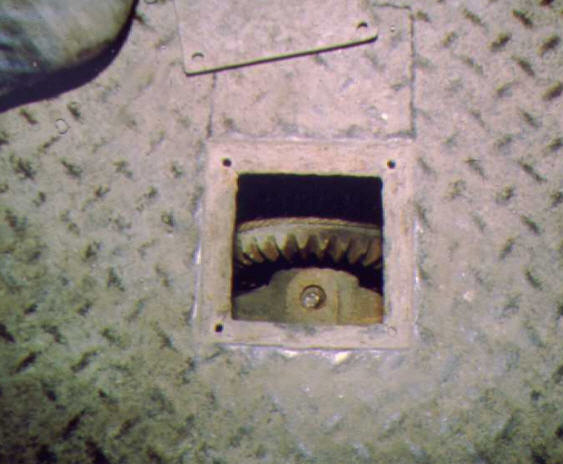

The hole in the car floor used to reset drum-operated safeties (Type B safety device).
This image is also part of the Mine Elevators series of photos.
Image provided by: Jerry Taylor
I know more!
Image 7

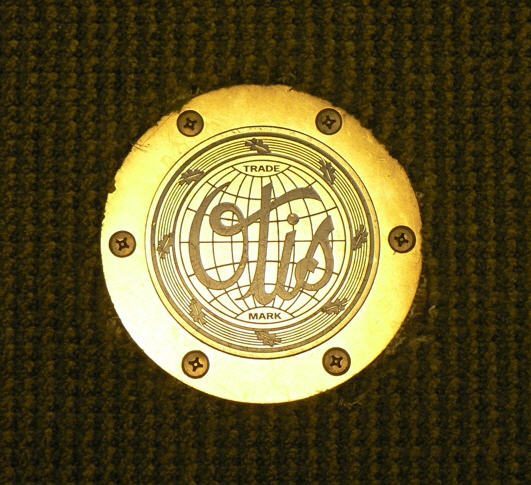

The floor plate that covers the hole in the car platform - don't let them tile, plank, or carpet over it!
Image provided by: Jim Jiels
I know more!
Image 8

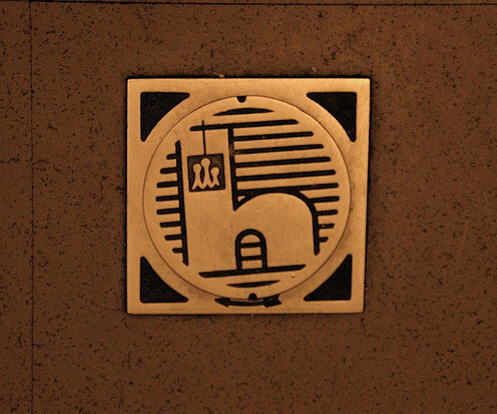

Another floor plate - Haughton Elevator Company
Image provided by: Eric Slater
I know more!
